Explanation: Precision pressure gauges are mainly used to calibrate ordinary industrial pressure gauges, and can also accurately measure the pressure of non corrosive, non crystalline, and non solidifying media on copper alloys and alloy structures at the process site. The instrument is equipped with an environmental environment (A-type B-type) below the scale line, which provides clearer and more accurate readings during use. And equipped with an adjustment device (Type B).
Structural principle: The instrument consists of a pressure measurement system, transmission mechanism, indicator device, and housing. The pressure measuring elastic element has undergone special processing to ensure stable and reliable performance. After being matched and debugged with high-precision transmission mechanisms, it can ensure accurate indication accuracy.
The working principle of the instrument is that when the pressure of the measured medium acts on the elastic element, it undergoes elastic deformation and displacement. The transmission mechanism is amplified by the pull rod, and the measured pressure is indicated by the indicator device.

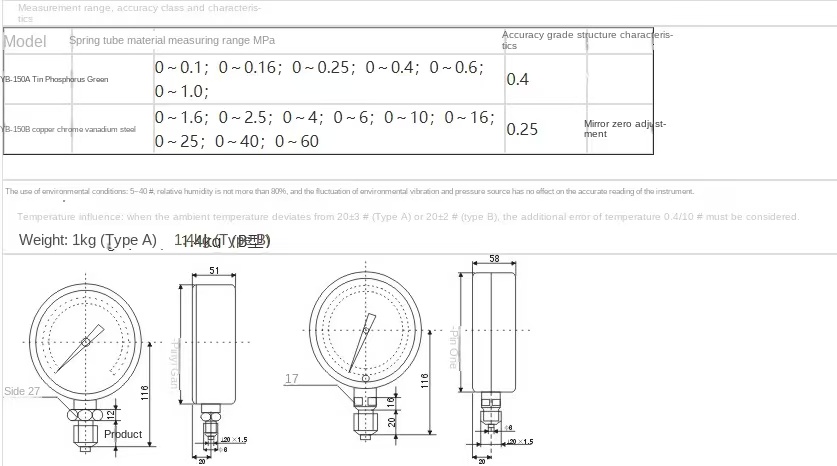

Main technical indicators:
